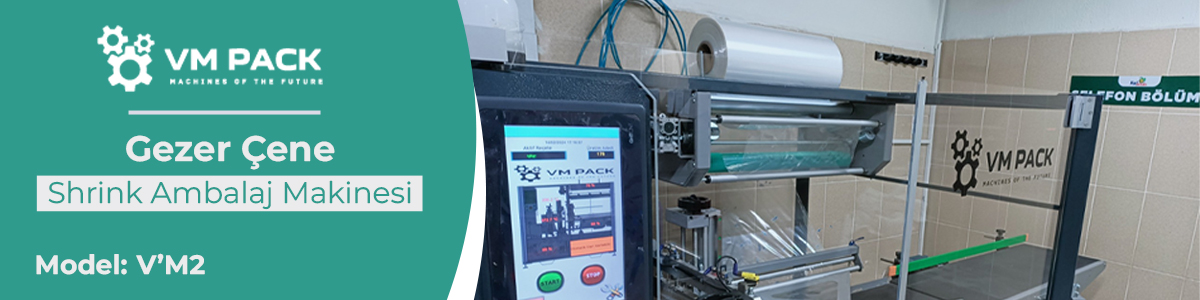

The VM Pack Continuous Motion Side Sealer Shrink Wrapping Machine stands out with its innovative design and servo motion technology, offering uninterrupted high speed packaging in demanding production environments. The continuous motion sealing bar works in perfect synchronization with the product flow, ensuring consistent and high quality sealing throughout the packaging process.
At VM Pack, we not only manufacture standard machines but also offer customized shrink packaging solutions specifically designed to meet your industry's needs. Contact us for detailed information on technical specifications, integration options, and customized solutions.
Appropriate shrink film for the product size is loaded into the film carriage of the machine.
Products are fed consistently into the machine via the feeding conveyor.
The products wrapped in shrink film are cut and sealed by the servo driven motion sealing bar. They are then conveyed through a shrink tunnel. Inside the shrink tunnel, the controlled heat distribution allows the shrink film to tightly wrap around the product's surface and takes its shape.
| Feature | Description |
|---|---|
| Continuous Motion Sealing bar | High speed continuous motion sealing bar ensures precise and reliable sealing. |
| Servo Motor Control | Enables precise and high speed cutting and sealing operations with servo driven control systems. |
| Color Touch screen Control Panel | User friendly interface allows for quick and easy adjustment of the machine settings. |
| Operating Modes | Sensor, measurement, and print mark(optional) modes adapt to various production needs. |
| Automatic Product Length Detection | Automatically detects product length for seamless packaging. |
| Motorized Width and Height Adjustment | Automatically adjusts to product dimensions. |
| Front-Rear Package Spacing | Adjustable in millimeters. |
| Recipe System | Allows for the saving of product parameters to enable quick recall and repeated use. |
| Product Counter | Counts the total number of packages produced during operation. |
| Motorized Film Waste Winding | Automatic winding system precisely collects shrink film waste generated during the packaging process. Speed is adjustable via drive control. |
| Motorized Film Unwinding | Automatically unwinds the shrink film from the roll during operation. Speed is adjustable via drive control. |
| Machine Material | The machine body is manufactured from steel construction and protected with electrostatic powder coating. |
| Warranty | 1-year warranty, with 5-year spare parts availability. |
| CE Compliance | The machine is equipped with mechanical and electrical safety measures in accordance with CE directives. |
| Max. Product Dimensions | Width: 410 mm, Length: unlimited, Height: 200 mm |
| Max. Speed | 35 meters/minute |
| Packaging Material | 7–19 micron (POF), 35–50 micron (PE) |
| Max. Roll Width | 650 mm |
| Air Pressure | 6 Bar |
| Voltage | 380V 50/60hz |
Continuous motion side sealer is widely used for packaging a diverse range of products such as eggs, dried figs, apricots, dates, chocolates, candies, Turkish delight, pizzas, vegetables, fruits, disposable plastics, cardboard cups and plates, wooden serving and cutting boards, water purification filters, home textiles, carpets, household items, various game materials, toys, drawing and writing boards, office and stationery supplies, books, magazines, paintings, various boxes, aluminum ladders, parquet flooring, aluminum profiles, wallpapers, clothes dryers, ironing boards, trash bins, cleaning sets, car filters, in-vehicle accessories, traffic products, as well as phones and tablets.
Shrink Packaging Applications for Food Products
Packaging Solutions for Disposable and Consumer Goods
|
Industrial and Construction Product Packaging Solutions
|
