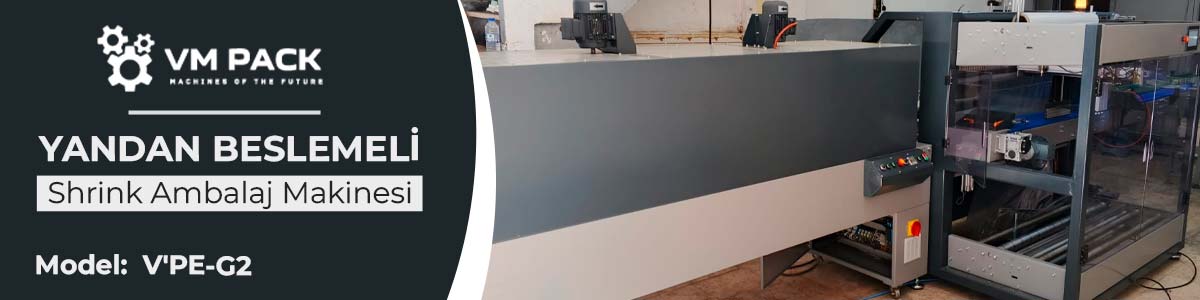

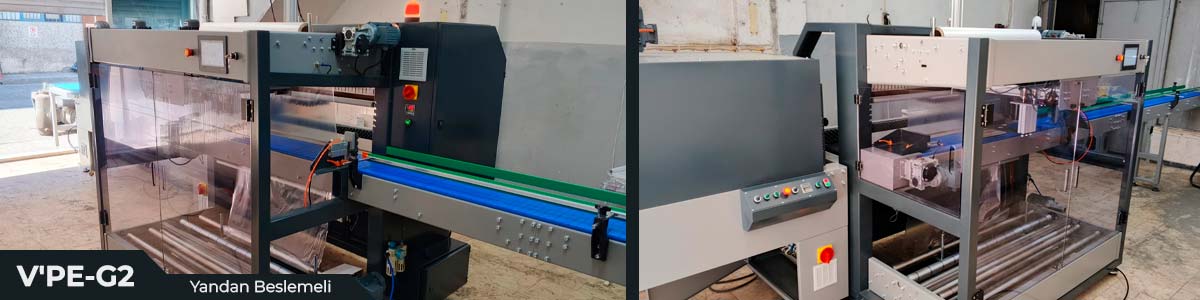

The 90 Degree Infeed Shrink Wrapping Machine is specifically designed to save space in production areas. The machine operates with either left or right side product feeding and ensures an efficient packaging process through a consistent product flow.
A divertor and product collection module are integrated into the infeed conveyor. The automatic collection unit bundles products according to the required quantity without any operator intervention.

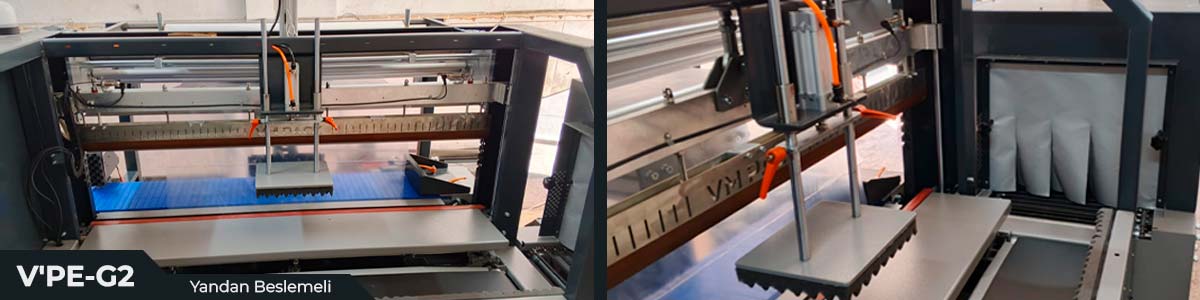

A motorized pusher enables smooth and efficient wrapping of both individual and multipack items. This system is ideal for packaging plastic, metal, and glass bottles, jars, and tin cans. The Automatic Shrink Bundling Machine is available in two configurations: 90° Infeed Shrink Wrapping Machine and Inline Shrink Wrapping Machine. The 90° infeed model is especially suitable for businesses looking to save space in their production environment.
For detailed technical information, model selection, or pricing inquiries, please contact us.
Shrink film appropriate to the product dimensions is loaded into the film carriage of the machine.
The operator sets the product bundling quantity via the machine's control panel.
The machine automatically bundles the products according to the selected quantity.
The products wrapped in shrink film are cut and sealed by a teflon coated hot sealing bar. They are then conveyed through a shrink tunnel. Inside the shrink tunnel, the controlled heat distribution allows the shrink film to tightly wrap around the product's surface and takes its shape. At the tunnel exit, cold air is applied to stabilize the packaging, ensuring a professional appearance.
| Feature | Description |
|---|---|
| Color Touch Screen Control Panel | User friendly interface allows for quick and easy adjustment of the machine settings. |
| Automatic Product Length Detection | Automatically detects product length for seamless packaging. |
| Product Counter | Counts the total number of packages produced during operation. |
| Motorized Film Unwinding | Automatically unwinds the shrink film from the roll during operation. Speed is adjustable via drive control. |
| Machine Material | The machine body is manufactured from steel construction and protected with electrostatic powder coating. |
| Warranty | 1-year warranty, with 5-year spare parts availability. |
| CE Compliance | The machine is equipped with mechanical and electrical safety measures in accordance with CE directives. |
| Max. Product Dimensions | Width: 500 mm, Length: 500, Height: 300 mm |
| Max. Speed | 12 packs/minute |
| Packaging Material | Polyethylene (PE) shrink film |
| Shrink Film Thickness | 35-100 micron |
| Max. Roll Width | 700 mm |
| Air Pressure | 6 Bar |
| Voltage | 380V 50/60hz |

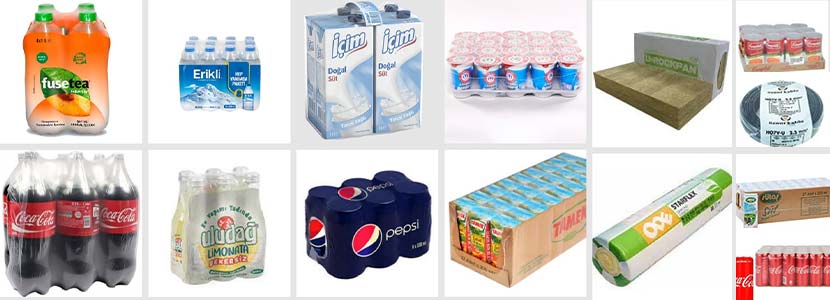

The Automatic Sleeve Wrapper Shrink Machine is used for packaging a variety of products, foods and beverages such as water, cola, energy drinks, fruit juice, soda, vinegar, and canned goods.
Food and Beverage Products
Packaging, Stationery, Cleaning and Household Products
|
Construction and Building Materials
|
